Infrastructure as Software

Code

Code = Snippet


var width=150; // width of the eyes in pixels
var colour="#06f"; // colour of the eye - bluey green in this case
var iris="#000"; //   colour of the iris (normally black);
/***************************\
*   Moving Eyeballs Effect  *
*(c)2012-3 mf2fm web-design *
*  http://www.mf2fm.com/rv  *
* DON'T EDIT BELOW THIS BOX *
\***************************/
var swide=800;
function addLoadEvent(funky) {
  var oldonload=window.onload;
  if (typeof(oldonload)!='function') window.onload=funky;
  else window.onload=function() {
...



Code = Snippet


# == Class: baseconfig
#
# Performs initial configuration tasks for all Vagrant boxes.
#
class baseconfig {
    exec { 'apt-get update':
        command => '/usr/bin/apt-get update';
    }

    host { 'hostmachine':
        ip => '192.168.0.1';
    }

    file {
        '/home/vagrant/.bashrc':
        owner => 'vagrant',
        group => 'vagrant',
        mode  => '0644',
        source => 'puppet:///modules/baseconfig/bashrc';
    }
}



Code = Script


#! /usr/bin/env python

class RequestHandler(BaseHTTPServer.BaseHTTPRequestHandler):

    def do_POST(self):
        content_length = int(self.headers['content-length'])
        data = self.rfile.read(content_length)
        self.send_response(200)
        self.end_headers()
        self.wfile.write("accepted.\n")
        self.wfile.close()
        now = int(time.time())
        filename = os.path.join(REPORT_DIR, "report-%s.yaml" % (now,))
        fd = os.open(filename, os.O_EXCL|os.O_CREAT|os.O_WRONLY)
        os.fdopen(fd, "w").write(data)

def main():
    logging.basicConfig(format="%(asctime)s %(message)s", level=logging.DEBUG)
    SocketServer.TCPServer.allow_reuse_address = True
    httpd = SocketServer.TCPServer(("", PORT), RequestHandler)
    httpd.serve_forever()

main()


My friend Clift Norris has identified a fundamental constant that I call Norris’ number, the average amount of code an untrained programmer can write before he or she hits a wall. Clift estimates this as 1,500 lines. Beyond that the code becomes so tangled that the author cannot debug or modify it without herculean effort.
-- John D. Cook

Software in Puppet?

Let me tell you a story..
tinyurl.com/puppetagain

Meet PuppetAgain

  • Open Source
  • Written in Puppet
  • Cross-Platform
  • Highly Available
  • Secure
  • Designed to Manage Job-Runners

Software

  • Architectural models

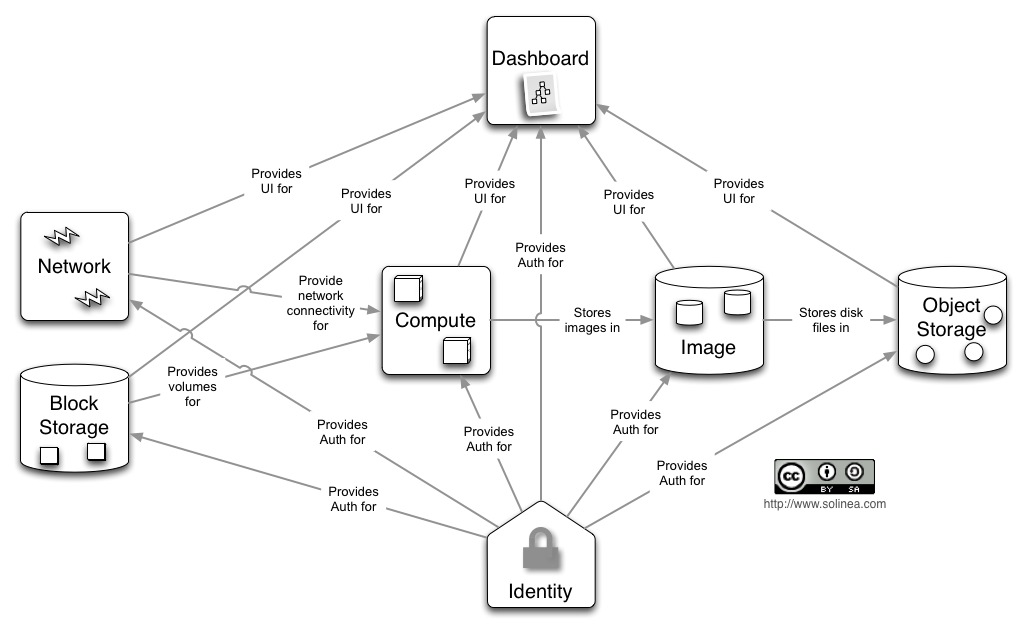

OpenStack Architecture

Approachability

If I change this, what will happen?

Where should I start reading code?

PuppetAgain: Toplevel


class toplevel::base {
    include users::root
}
class toplevel::server inherits toplevel::base {
    include puppet::periodic
    include cron
}
class toplevel::server::mozpool inherits toplevel::server {
    include bmm
    include mozpool
}


PuppetAgain: Toplevel


node "mobile-imaging1.p1.releng.scl3.mozilla.com" {
    include toplevel::server::mozpool
}


PuppetAgain: Configuration


# modules/config/manifests/base.pp
class config::base {
    $ntp_server = ''
}
# manifests/moco-config.pp
class config inherits config::base {
    $ntp_server = 'time.mozilla.org'
}


PuppetAgain: Configuration


class ntp::config {
    include ::config
    if ($::config::ntp_server) {
        ..
    }
}


Software

  • Architectural models
  • Controlled Interdependencies

Apache: Modules

PuppetAgain: Dirs


class dirs::builds {
    file { "/builds": ensure => directory; }
}
class dirs::builds::slave {
    include dirs::builds
    file { "/builds/slave": ensure => directory; }
}


PuppetAgain: Dirs


class talos {
    include dirs::builds::slave
    file {
        "/builds/slave/talos-slave":
            ensure => directory;
    }
}


Software

  • Architectural models
  • Controlled Interdependencies
  • Organizing Principles

PA: Principle of Least Surprise


include mig_agent::install


.. installs mig-agent .. or dies trying

PA: Principle of Least Surprise


class mig_agent::install {
    case $operatingsystem {
        CentOS: { .. }
        default: {
            fail("Cannot install on $operatingsystem")
        }
    }
}


Software

  • Architectural models
  • Controlled Interdependencies
  • Organizing Principles
  • Abstractions

Puppet: Packages


package {
    'httpd':
        ensure => '2.2.15';
}

Write once, run everywhere, right?

PuppetAgain: Packages

include packages::httpd

PuppetAgain: Packages


class packages::httpd {
    case $::operatingsystem {
        CentOS: {
            package { "httpd": ensure => latest; }
        }
        Ubuntu: {
            package { "apache2": ensure => latest; }
        }
        Darwin: {
            # installed by default
        }
        default: {
            fail("cannot install on $::operatingsystem")
        }
    }
}


Writing Software
is Hard

Challenges

  • Package repositories are part of the code

Repositories:

Pinning is Hard

  • Un-specified prerequisite packages aren't pinned
  • Can confuse package managers
  • Modifying the repo makes production changes

Repositories:

Mirroring is Hard

Can we update mirrors now?
No.

Repositories:

Sharing is Hard

Repositories:

They're Huge


[root@releng-puppet2.srv.releng.scl3.mozilla.com dmitchell]# df -h /data
Filesystem            Size  Used Avail Use% Mounted on
/dev/mapper/vg_relengpuppet2-lv_data
                      414G  315G   78G  81% /data


Challenges

  • Package repositories are part of the code
  • Interactions are hard to model

Module Interactions

  • 'httpd' module installs Apache
  • 'rsyslog' module installs rsyslog
  • When both are installed, we want to send access logs to rsyslog

Module Interactions


class httpd::logging {
    include rsyslog::config_dir
    file {
        "${rsyslog::config_dir::dir}/httpd.conf":
            content => template("${module_name}/rsyslogd_httpd.conf.erb");
    }
}

Httpd has to know about rsyslog?

Challenges

  • Package repositories are part of the code
  • Interactions are hard to model
  • Acceptance-level testing is hard

Go Forth and
Write Software
